Combining Complex Orders in Perovskites

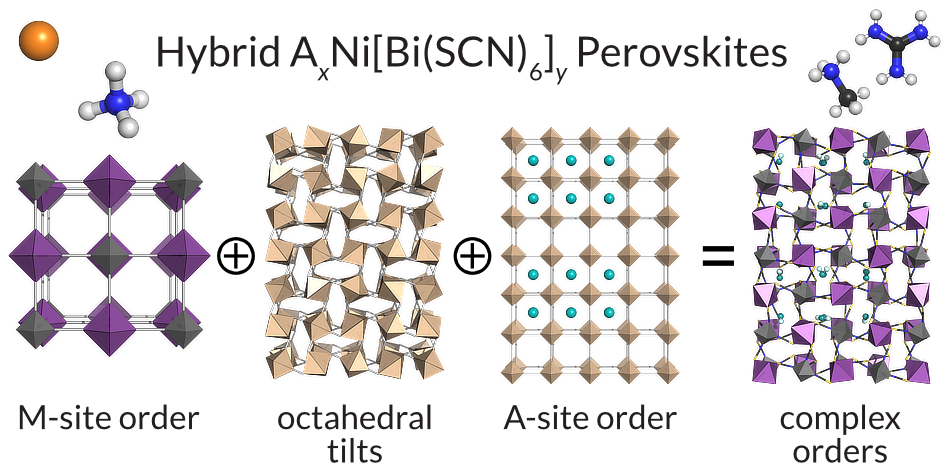

Figure: Combining multiple orderings is possible in A{Ni[Bi(SCN)6]} perovskites through the A-site cations.
Many of the most useful properties of materials arise from the collective ordering of many individual nanoscale components across an entire crystal: for example, ferromagnetism is the result of aligning the magnetic spins within a material and ferroelectricity is the ordering of polar electric distortions. One way to create new properties in materials is therefore to order multiple different features simultaneously (e.g. combining ferromagnetic order with ferroelectric order to create magnetic and electric ‘multiferroics’). Making use of this strategy, however, means confronting the general tendency for materials towards disorder.
In this paper, we make four new compounds, each consisting of a negatively charged 3D nickel bismuth hexathiocyanate framework containing a different charge-balancing cation in its pores. The chemistry of thiocyanate frameworks produces multiple kinds of order: the difference between the nitrogen and sulfur ends of the thiocyanate ion makes the nickel and bismuth order into an alternating pattern and the shape of the thiocyanate ion distorts the framework through tilting of the metal coordination octahedra. In this paper, we show that the charge-balancing ‘A-site’ cations also order – and this order relates directly to the other two distortions. Using a combination of X-ray and neutron diffraction (carried out at the Institut Laue-Langevin in Grenoble, France) we were able to determine the structures of these materials. Symmetry analysis and computational chemistry calculations helped us to explain the orderings adopted by the A-site cations in these materials.
These insights allowed us to design a new metal bismuth thiocyanate which we predict will be piezoelectric: i.e. it will be electrically polarised when compressed, like quartz. These results could help researchers synthesise new materials with interesting and useful properties like ferro- or piezoelectricity.
This work was carried out by Jie Yie Lee (a summer student in the group) in collaboration with the Advanced Materials Research Group at the University of Nottingham, the Department of Chemistry at the University of Warwick and the Institut Laue-Langevin.
Paper
Controlling multiple orderings in metal thiocyanate molecular perovskites Ax{Ni[Bi(SCN)6]}
J Y Lee, S Ling, S P Argent, M S Senn, L Cañadillas-Delgado and M J Cliffe, Chem. Sci., 12, 3516–3525 (2021).
This publication is open access. In addition, the submitted version is available on the ChemRxiv.
